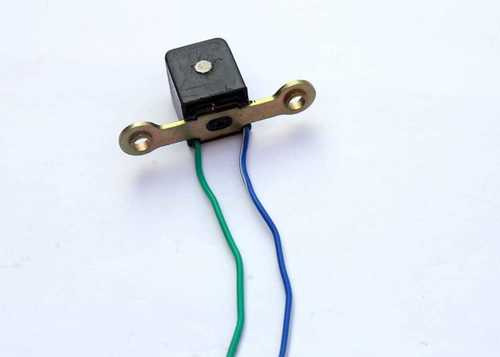

Pick Up Coil

Name: Pick Up Coil
Brand: DHINGRA SCOTWAYS
Price: 100-10000 INR
Availability: InStock

100-10000 INR/Piece

Get a Price/Quote

Product Details:

For Use In Automobiles, Motorcycles, Scooters
Working Life 100,000 cycles
Corrosion Resistant Yes
Color Black/Silver
Noise Level < 25 dB
Model No PUC-1190
Connecting Type Wired
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pick Up Coil Price And Quantity

Minimum Order Quantity 100 Piece
Price 100-10000 INR/Piece

Mounting Type Direct Mount
Compatibility Universal for multiple models
Lead Wire Length 90 mm
Coil Resistance 350-380 Ohm
Current Consumption Approx. 120 mA
Voltage 12V DC
Application Pick up signal for ignition timing
Insulation Class Class B
Operating Frequency 50-60 Hz

Pick Up Coil Product Specifications

Method Electromagnetic Induction
Color Black/Silver
Corrosion Resistant Yes
Noise Level < 25 dB
Part Type Ignition Component
Model No PUC-1190
Product Type Pick Up Coil
Size Standard
For Use In Automobiles, Motorcycles, Scooters
Working Life 100,000 cycles
Vehicle Type Two Wheeler/Four Wheeler
Connecting Type Wired
Temperature Range -20C to 120C
Lubrication Type Non-Lubricated
Load Capacity Standard
Material Copper, Plastic
Surface Treatment Powder Coated
Finish Polished
Operating System Compatible with CDI
Dimension (L*W*H) 45mm x 30mm x 22mm
Weight 50-100 grams

Mounting Type Direct Mount
Compatibility Universal for multiple models
Lead Wire Length 90 mm
Coil Resistance 350-380 Ohm
Current Consumption Approx. 120 mA
Voltage 12V DC
Application Pick up signal for ignition timing
Insulation Class Class B
Operating Frequency 50-60 Hz

Pick Up Coil Trade Information

Supply Ability 1000 Piece Per Day
Delivery Time 30 Days

Product Description

Pick Up Coil is an essential engine component that is designed for ignition systems to generate voltage pulse to deliver power to the ignition module and timing sensors. This electrical spare part ensures the efficient switching of ignition coil. It is engineered with high precision as per the electrical engineering standards that result in high working efficiency and longer service life. Customers can get Pick Up Coil from our company at a reasonable and low price range.

Engineered for Versatility and Efficiency

The PUC-1190 Pick Up Coil can be seamlessly integrated into a wide variety of vehicles, including both two-wheelers and four-wheelers, due to its universal design. Its compact size and direct mount feature allow easy installation in confined engine bays, while the corrosion-resistant build ensures robust performance, even in challenging conditions.

Reliable Signal Acquisition for Precise Ignition Timing

Utilizing the principle of electromagnetic induction, this pick up coil delivers consistent and accurate signal acquisition needed for precise ignition timing. It is compatible with CDI systems, enabling it to reliably trigger ignition sequences over a working life of up to 100,000 cycles and minimal noise emission.

FAQs of Pick Up Coil:

Q: How is the PUC-1190 Pick Up Coil installed in an automobile or motorcycle?

A: The PUC-1190 is designed for direct mount installation using its compact 45mm x 30mm x 22mm dimensions. The unit connects via a standard wired connection with a 90 mm lead wire, making it suitable for straightforward integration into the ignition system of automobiles and motorcycles.

Q: What are the primary applications of this pick up coil?

A: This pick up coil is primarily used to provide precise ignition timing signals in two-wheelers and four-wheelers, including motorcycles, scooters, and cars. Its universal compatibility enables use across multiple vehicle models.

Q: When should the pick up coil be replaced?

A: Replacement is typically required if there is a drop in ignition performance, irregular engine starting, or after the coil has reached its working life of approximately 100,000 cycles. Regular inspections can help identify any issues early.

Q: Where is the PUC-1190 pick up coil manufactured and available for export?

A: The PUC-1190 is manufactured in India and is available for export to various international markets, meeting the needs of automotive distributors and manufacturers globally.

Q: What process does the pick up coil utilize to generate ignition timing signals?

A: The coil uses electromagnetic induction to pick up acceleration signals, which are then relayed to the CDI (Capacitor Discharge Ignition) system to ensure timely ignition sequences.

Q: How does the pick up coil benefit vehicle performance?

A: By delivering precise and stable ignition timing signals, the pick up coil ensures efficient engine performance, smooth starting, and reliable operation, contributing to fuel efficiency and reduced engine wear.

Q: What makes the PUC-1190 pick up coil durable and low-maintenance?

A: Its copper and plastic construction, powder-coated corrosion-resistant surface, and Class B insulation provide protection against environmental stresses, while the non-lubricated, polished finish enhances its service life with minimal maintenance.
